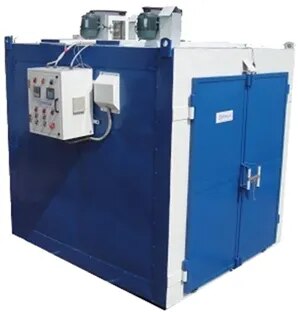

Welding Electrode Machinery Baking Oven

Welding Electrode Machinery Baking Oven

Welding Electrode Oven Developed designed to minimize loss to Industrial Oven and heat put for uniform distribution of heat. Stationery type fabricated to structure sections, covered with MS & inside chamber SS 304 steels double walls in bet which gap filled with best insulation glass wool blankets, Industrial Oven, heating elements arranged in delta star position easily approachable for replacement, bolt side openings, double door, special centrifugal for maximum circulation and homogeneous distribution.

Raw Material :

The inner wall and the baffles are made up of 2 mm SS 310 Sheets to withstand temperatures up to 450 degree C on continuous duty.

Construction :

The oven casing designed as double wall construction with minimum 200 mm of ceramic fiber blanket/ ceramic wool insulation in between inner and outer wall to avoid the leakage of heat.

Outer wall temperature on continuous duty: 50 degree C (maximum)

Safety :

Heating element contactors are electrically interlocked with door to shut off power to heaters as door opens and restores power when closed.

Features:

High tensile strength

Longer service life

Robust construction

Specifications:

Flange Diameter 630 mm Max

Max. Weight Reel + Wire 600 Kg

Winding Speed 12.5 m/sec

Winding Wire Diameter 0.8 mm to 1.6 mm

Brake Caliper type pneumatic disc brake

Power 5 HP AC Motor, 1440 RPM

Drive AC Inverter

Reel/bobbin Standard DIN 46397
