Welding Electrode Production Line In India We are one of the most promising exporters of Welding Electrode Production Line in India. Our machinery renders trouble free performance for longer period of time. We provide comprehensive range of products such as welding electrode manufacturing machinery, welding electrode equipments, welding electrode accessories and welding electrodes. Products served by us are made up of quality raw materials, which increase their durability and efficiency. Features: • Rugged construction • Longer service life • Robust construction • Low Operation cost Welding Electrode Production Line In Coimbatore Welding Electrode Production Line In South Africa Welding Electrode Production Line In Tanzania Welding Electrode Production Line In Nepal Welding Electrode Production Line In Philippines Welding Electrode Production Line In Sri Lanka

WELDING ELECTRODES MANUFACTURING PLANT Welding Electrode Plant are directly loaded into the Extrusion, wire feeder into coating area feeds the required core wire. The high specific pressure generated in the extruder ensure company and uniform flux coat; concentrically of coating is easily adjustable, the flux coated electrodes are fed in to conveyor, which takes care of brushing, Tip Cleaning, Brand Name printing and passes to unloaded conveyor Welding Electrode Plant in Sri Lanka Welding Electrode Plant in Philippines Welding Electrode Plant in Nepal Welding Electrode Plant in Tanzania Welding Electrode Plant in South Africa Welding Electrode Plant in Coimbatore

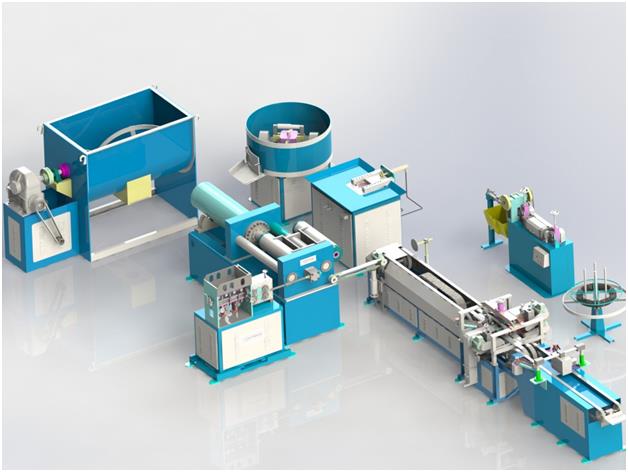

Welding Electrode Machinery, Welding Electrode Plants We are manufacturing complete plant and machinery for Welding Electrode Manufacturing Plant, Plant capacity ranges from 1 MT per shift to 12 MT per shift.The plant consists of Wire straightening and cutting machines, Mixers, Briquetting press, extruder, wire feeder, conveyor and Baking Oven. Features: Minimal maintenance Accurate dimensions Resistance against corrosion

This machine is designed to strip out the wet flux of the coated electrode in green stage. In the extrusion plant, some of the electrode will come out in under pressure or get damage in the conveyor or the electrodes tested in concentricity tester can not be used as such, hence we have to remove the coated flux from the core wire. The coated electrode to be loaded in the reclamation machine in batches of 10, 20 kgs. After loading, the top cover should be closed. After closing the cover the machine will be switched ON. Loaded electrodes are roated between 4 disc mounted shaft, each shaft having 26 nos. of inclimed disc. During rotation, the inclined disc will give wiping action, Out of four shaft bottom shaft is fitted with eccentric disc to give the agitating action to the electrodes. After few minutes (10 to 15 minutes) you can inspect through the transparent window fitted on top cover, the the core wires are taken and loaded to wire feeder of the extrution plant. Wet flux which was collected from bottom tray has been moved to wet mixer, along with this add 10% of wet flux for fresh batch.

Winder Machine - MIG Wire Plant We hold paramount experience in offering our clients with a compact assortment of Winder Machine, which is fabricated by utilizing superior grade raw material along with heavy steel structure and shafts that takes load of up to 600 kg. These plants are manufactured in compliance with the industry laid parameters that makes us to dispatch an error free range at the patrons end within the stipulated time frame. Some features are: High tensile strength Low maintenance Sturdy construction Resistance against corrosion Specifications : Flange Diameter 630mm Max. Max. Weight Reel+ Wire 600 Kg Winding Speed 12.5 m/sec Winding Wire Diameter 0.8 mm to 1.6 mm Brake Caliper Type Pneumatic Disc Brake Power 5 HP AC Motor, 1440 RPM Drive AC Inverter Reel/bobbin Standard DIN 46397

BB Block - MIG Wire Plant Our organization specializes in offering a compact range of BB Block that is fabricated with caliper type pneumatically operated disc that helps to stop the machine once the breakage occurs. Qualified team members make sure to use qualitative raw material that is obtained from the credited vendors of the market. In addition to this, these blocks are available with us in diverse customized options as per their needs and demands. Some features are: Effective usage Low maintenance Resistance against corrosion Easy to install Specifications : Model OMEGA BB - 450 Material Drawn CO2 Wire Material Size 0.8 mm to 1.6 mm Drawing Speed 12.5 m/sec Brake Caliper Type Pneumatic Disc Brake Power 15 HP 1440 RPM Drive AC Inverter

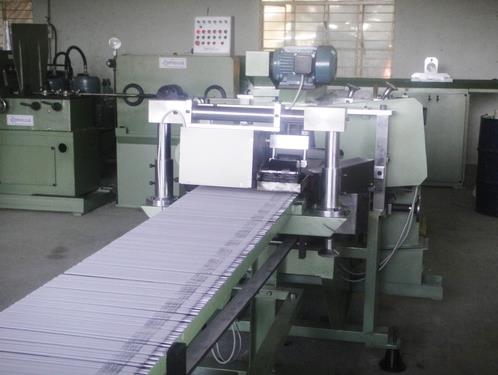

Welding Electrodes Manufacturing Plant The Welding Electrode Plant are directly loaded into the Extrusion, wire feeder into coating area feeds the required core wire. The high specific pressure generated in the extruder ensure compact and uniform flux coat; concentrically of coating is easily adjustable, the flux coated electrodes are fed in to conveyor, which takes care of brushing, Tip Cleaning, Brand Name printing and passes to unloaded conveyor. Features: Corrosion resistance Longer service life Robust construction

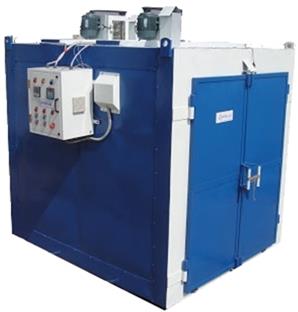

Welding Electrode Machinery Baking Oven Welding Electrode Oven Developed designed to minimize loss to Industrial Oven and heat put for uniform distribution of heat. Stationery type fabricated to structure sections, covered with MS & inside chamber SS 304 steels double walls in bet which gap filled with best insulation glass wool blankets, Industrial Oven, heating elements arranged in delta star position easily approachable for replacement, bolt side openings, double door, special centrifugal for maximum circulation and homogeneous distribution. Raw Material : The inner wall and the baffles are made up of 2 mm SS 310 Sheets to withstand temperatures up to 450 degree C on continuous duty. Construction : The oven casing designed as double wall construction with minimum 200 mm of ceramic fiber blanket/ ceramic wool insulation in between inner and outer wall to avoid the leakage of heat. Outer wall temperature on continuous duty: 50 degree C (maximum) Safety : Heating element contactors are electrically interlocked with door to shut off power to heaters as door opens and restores power when closed. Features: High tensile strength Longer service life Robust construction Specifications: Flange Diameter 630 mm Max Max. Weight Reel + Wire 600 Kg Winding Speed 12.5 m/sec Winding Wire Diameter 0.8 mm to 1.6 mm Brake Caliper type pneumatic disc brake Power 5 HP AC Motor, 1440 RPM Drive AC Inverter Reel/bobbin Standard DIN 46397

Welding Electrode Machinery Printing Machine Owing to our rich expertise, we are offering a compact assortment of Electrode Printing Machine. Moreover, these products can be availed from us in distinct sizes and grades as per the clients specific needs and requirements. In addition to this, patrons can avail this consignment from us in multifarious sizes, grades and other specifications as per their requirements within the stipulated time frame. which used to be possible only by a semi-automatic or manual operation has now been materialized. Some features are: Low Operation Cost Processing-length measurement Rugged construction Longer service life Robust construction Specifications: Flange Diameter 530 mm Max Max. Weight Reel + Wire 700 Kg Winding Speed 12.5 m/sec Winding Wire Diameter 0.8 mm to 1.6 mm Brake Caliper type pneumatic disc brake Power 5 HP AC Motor, 1440 RPM

Wet Wire Drawing Machine With the aid of our technicians, we are able to bring forth an outstanding range of Wet Wire Drawing Machine to our valued patrons. These offered machines are fabricated by means of advanced technology and production tools in total Wet Wire Drawing Machine Conformity with the industry laid parameters. In addition to this, our team makes sure to use optimum grade raw material that is procured from the most accredited vendors of the industry for dispatch of an error free range. Some features are: Efficient performance Minimal maintenance Resistance against corrosion Longer service life Specifications: Inlet Size 2.0 to 2.4 mm Max Finished Size 0.8 mm to 1.6mm Drawing Speed 12.5 m / sec Area Reduction 14 - 15.5% max No.of Dies 11 Capstan TC Rings Power 60 HP AC motor, 1440 RPM Drive AC Inverter

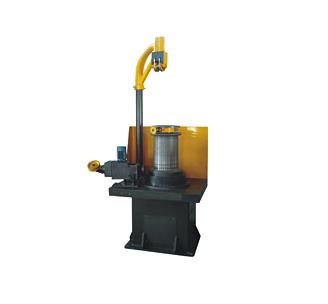

Pre Block - MIG Wire Plant Our organization caters to the needs and demands of the patrons in a well defined manner by offering a reliable range of Pre-Block to the respected clients. These blocks are fabricated as per the desired requirements of clients to avoid any inconvenience to their applications in various industries and sectors. from the customers. In addition to this, esteemed customers can avail from us this array in diverse grades and dimensions as per their needs and preferences. Some features are: Adjustable panels Minimal maintenance Resistance against corrosion Accurate dimensions Specifications: Model Overhead Take Off (OTO) Material to be Drawn WR3 Grade wire Max. Inlet Size 2.50 mm No. of Dies 2 Drum Size 405 mm / 400 mm Power 7.5 HP AC, 1440 RPM

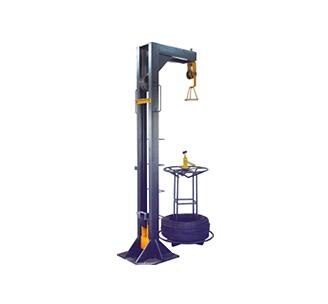

Pay Off Stand With the help of our experienced workforce, we are able to present a durable range of Pay off Stand to our deemed clients. These stands are manufactured with utmost precision by making use of prime grade raw material by means of updated machines and advent technology. Offered stands are fabricated in sync with the industry laid standards and norms that helps us to deliver a defect free range at the clients end within the postulated time frame as per their needs and demands. Some features are: Durable Minimal maintenance Rugged construction Easy usage
